Ultra-low-Rdson load switch with smart detection
限流+智能識別
限流+智能識別
? Ultra low R ON High Side MOSFET
- 16 mΩ @ 3.6A, 25℃
? Programmable current limit
? ±7% current limitation at 3A load current
? Operating voltage range: 4.5V to 6.5V
? Build-in soft-start
? Supports smart detection on D+ and D- lines
- Battery Charging specification BC1.2 for DCP
- Chinese Telecommunication industrial stand-
ard YD/T 1591-2009
- D+/D- option for Apple device with 2.4A
- D+/D- option for Samsung device
? ESD protection on USB ports (VOUT, DP, DM)
- Human Body Model (HBM): >8 kV

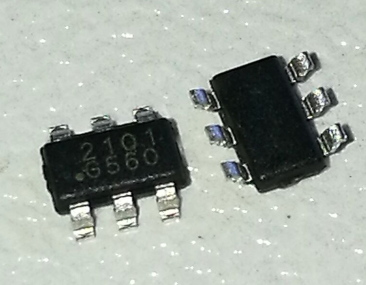

? SOT23-6 package
